PoC actions and manager for generic databases

To understand the thought process take a look at the following workflow. Note that in this example both databases are stored on the mysql-service (machine) and nowhere else.

# deployment of 2 charms (mysql from charmstore)

juju deploy mysql
juju deploy generic-db-manager

# this relation should prepare the db-manager and give possibility to create mysql databases

juju add-relation mysql generic-db-manager

# charm that deploys a website (imagine some php pages) on an nginx or apache

juju deploy webshop
juju expose webshop

# create the actual databases

juju run-action generic-db-manager create name=webshop-users type=mysql
juju run-action generic-db-manager create name=webshop-items type=mysql

# this action should start a subordinate in generic-db-manager service
# as a result each subordinate represents a database

# adding relations so that webshop can use the database

juju add-relation webshop db-subordinate-users
juju add-relation webshop db-subordinate-items

# if now a second application wants to access the same database this becomes possible
# imagine webshoptool being another website (node) making it possible to fill the items database and tables

juju deploy webshoptool
juju expose webshoptool

juju add-relation webshoptool db-subordinate-items

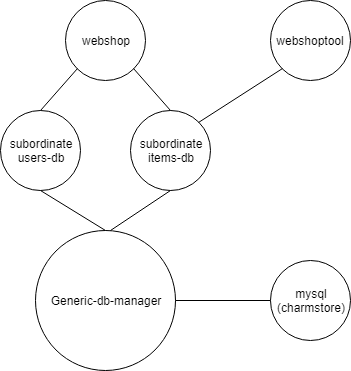

If we visualise this we get something like this:

Note that this offers flexibility:

• When supported the type parameter can be technologyspecific but could also support sql
• Extra parameters could enforce requests
• !! Multiple applications can use the same database !!

Biggest problems:

• Is it possible to create/deploy subordinates (or normal charms) inside an action?
• The database nodes hold some information but are not really services
